Neil Peart's drum kit
Neil's kit has changed over the years to fit the needs of Rush's music. Since 1996, he seems to be favoring acoustic drums over electronics―although the electronics remain as a satellite kit for live performances. While Neil's kit is large, he's always used the expanded range of voices in interesting ways. On this page, you'll find his latest drum and cymbal setups, as well as the parts list for the 30th Anniversary Kit replicas.
- Hockey Theme Drum Kit New!
- Drum Channel Master Class Kit
- Buddy Rich 2008 kit
- Snakes & Arrows Tour kit
- Past drum kits
- 30th Anniversary Snare
- Cymbals
At the end of 2009, Neil Peart recorded a new version of The Hockey Theme for TSN networks. For the recording and song, Drum Workshop built Neil a new hockey-themed drum kit. According to the DW drums article:
The set is airbrushed in Lacquer Graphics with NHL logos and ultra-custom Ice Blue hardware. DW Custom shop Artist, Louie Garcia comments, Neil told me he wanted to begin a new masterpiece with this kit. He really wanted it to represent the game of hockey, incorporating center ice and the face-off circles. And for the look of ice, we with went with a pearlescent color called Blue Frost. It really is a unique kit"
Globe and Mail article about recording the new theme.
More photos of the recording session.
Drum Channel Master Class Kit - 2008
Go to this part of Neil Peart drumkits for more information.
Go to my Buddy Rich 2008 kit page for all the details on this kit.

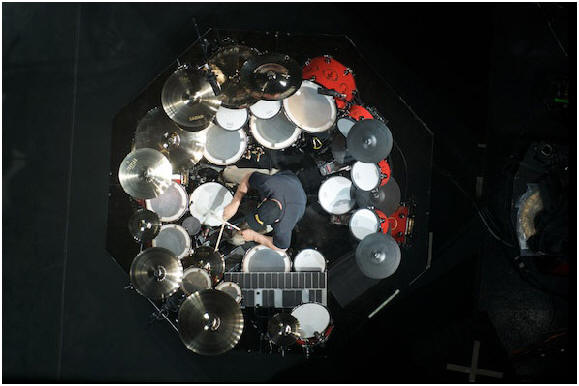

Neil from above - photo by John Arrowsmith
From the Snakes & Arrows tour book by Neil Peart:
After the 30th anniversary tour, the guys at Drum Workshop and I agreed that the R30 kit ought to be retired. I felt that way because it had been a true centerpiece of that tour (sitting center stage every night, after all), and I wanted to keep that "specialness." The DW guys, lead by John Good ("the Wood Whisperer"), felt that way because they thought they could do better.
In 2006, they built me a “West Coast kit” on which I recorded a few songs for my friend Matt Scannell, as well as Snakes and Arrows. Everybody who heard those drums was blown away by their sound, but John continued to develop his ideas—combining different combinations of laminates for the shells, like his “Vertical Low Timbre” innovations. Just as the West Coast kit had eclipsed the R30 drums in tonality and resonance, these new ones take it to what my teacher, Freddie Gruber, would call “another place.” After I had rehearsed a couple of weeks on the West Coast kit, my drum tech, Lorne “Gump” Wheaton, put up the new ones, and I truly couldn’t believe how different they sounded—how much bigger and warmer.
One of these drums is bigger—the 23” bass drum, which is another unique innovation of John Good’s. Back in the 70’s, when Rush were opening shows, I used to be able to go out front and listen to other drummers. I noticed then that 24” bass drums had a particular “kick” (for once the word is apt), but I preferred the playability and dynamics of a 22”. John suspected that the 23” would combine the best of both, and he was right.The “VLT” approach was also applied to the snare drum’s shell, and it was another revelation—the best I have ever played, for both response and sound. The toms are 8”, 10”, 12”, 13”, two 15”, 16”, AND 18”, with DW’s Coated Clear heads. Remo supplies some of the other heads, while the drumsticks are Pro-Mark signature models.
In an earlier Web story, I noted that “black is the new gold,” and this time the hardware is plated in black nickel. Likewise, “red is the new black,” the finish is Aztec Red, inset with a pair of logos Hugh Syme and I created for the CD package. The Greek symbol ouroboros, or snaking eating its tail, surrounds a calligraphic rendering of my favorite road sign: the universal symbol for “winding road.” (On a motorcycle or in a fast car, that’s the best kind of “snake and arrow” you can see.”) The repeating motif, in gold leaf and metallic gray satin over the Aztec Red, was created by DW’s master painter, Louie Garcia (a true artist).
The cymbals are my signature Paragons, by Sabian, with a 22” ride, 20”, 18”, and two 16 crashes, 13” high-hats, 14” “x-hats,”8” and 10” splashes, 19” and 20” China types—plus our new innovation, the “Diamondback,” with tambourine jingles.
DW once again provided custom shells for the Roland V-drums (the TD-20s), and the electronic stuff includes a MalletKAT, KAT trigger pedals, and a Dauz pad, all running through a Roland XV5080 sampler and Project X Glyph hard drives.

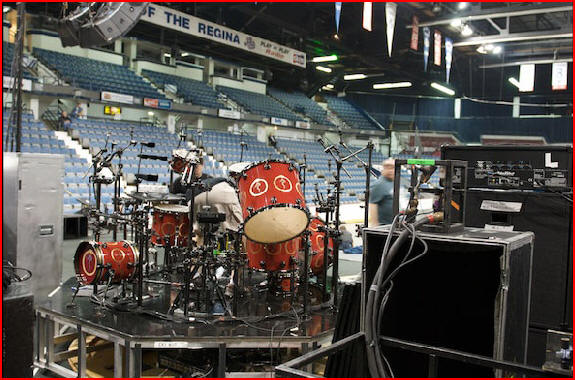

Drum setup photos - by John Arrowsmith (pyro tech for Rush)
Neil's warm-up kit - photo by John Arrowsmith
Neil has a warm-up kit backstage, where he spends 20-30 minutes getting ready for the show. This photo, taken backstage at the Gorge, Washington, has a few interesting details. First, Neil's using the classic DW high-hat stand design, with the flat legs. Note how this stand doesn't fit as closely to his double-bass pedal. Also, he has a basic cymbal set-up, including the new Paragon Diamondback cymbal (instead of a traditional China-type). Finally, the drumsticks do not appear to be the usual Pro-Mark 747s, but a Hot Rod or maybe something new.
From behind Neil's kit - by Ross Halfin
Neil Peart Articles and Videos on DWdrums.com
Articles
The Heart and Soul of a Drumset -- Chapter 1: Bass Drum Heartbeat
Videos
Neil Peart's X shell and hybrid kit
Other Neil Peart videos are available in the drop-down menu.
Drumhead - September October 2007
Interactive Artist page from Sabian.com

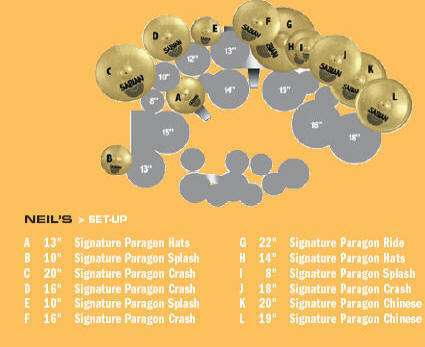

Infographic from Drum! Magazine, June 2007, by Rick Eberly
Note: P is incorrectly labeled in the infographic as a "10" V-drum..." This should be a "Dauz pad."
S.S. Professor Kit (used on R30 Tour)
Go to my report on the S.S. Professor tour for tons of details and photos of the 30th Anniversary Kit.
The diagram below was taken from the Modern Drummer 9/2002 interview with Neil Peart, which still represents the drum and cymbal sizes, as well as electronic set up. However, for the 30th Anniversary Tour kit, used in 2004, the cymbal brand has now switched to Sabian. The finish of the drums has changed, and the hardware is now gold plated.
Neil says of his new kit in the 30th Anniversary Tour Book, "The drums are also brand, spanking new, a special '30th anniversary' kit created for me by the good people at DW. As we worked together on the design, we aimed to create the drum-set equivalent of the 'dream cars' displayed at auto shows, a showpiece that was also the ultimate expression of craftsmanship."
360-degree photos of Neil's drum kit
Parts list (from the 30th Anniversary Commemorative Kit)
|
DRUMS
|
|||
| Qty | Part ID | Comments | |
| 1 | DREX0708TTGSG | 7X8 TT | Custom Graphics W/ Gold HDW (STM) |
| 1 | DREX0710TTGSG | 7X10 TT | Custom Graphics W/ Gold HDW (STM) |
| 1 | DREX0812TTGSG | 8X12 TT | Custom Graphics W/ Gold HDW (STM) |
| 1 | DREX0913TTGSG | 9X13 TT | Custom Graphics W/ Gold HDW (STM) |
| 1 | DREX1215TTGLG | 12X15 TT | Custom Graphics W/ Gold HDW (STM) |
| 1 | DREX1315TTGLG | 13X15 FT w/legs | Custom Graphics W/ Gold HDW (LEGS) |
| 1 | DREX1616TTGLG | 16X16 FT w/legs | Custom Graphics W/ Gold HDW (LEGS) |
| 1 |
DREX1618TTGLG Drilled for 2 TB12's |
16X18 FT w/2 mounts for stands |
Custom Graphics W/ Gold HDW |
| 1 | DREX1622KKG5G | 16X22 Kick w/mount for 16" crash | Custom Graphics W/ Gold HDW |
| 1 | DREX0614SEG | 6X14 EDGE SD | Custom Graphics Edge Snare W/ Gold HDW |
| 1 | DREX5514SMG | 5.5X14 SOLID-PLY SD | Custom Graphics Solid Snare W/ Gold HDW |
| 1 | DREX3513SSG | 3.5X13 PICCOLO SD | Custom Graphics Collectors Snare W/ Gold HDW |
| HARDWARE | |||
| (All 24K Gold-Plated) | |||
| Qty | Part ID | Comments | |
| 1 | DWCP9100M | Tripod Throne | |
| 1 | DWCP9300 | Snare Stand for 5X14 Snare | |
| 1 | DWCP9002PC | DW 9002 Double Pedal W/ Case | |
| 1 | DWCP9500TB | For Hi Hat # 1 | |
| 1 | DWCP9700 | For 10" Splash # 1 | |
| 1 | DWCP9700 | For 20" Crash | |
| 1 | DWCP9700 | For 16" Crash # 1 | |
| 1 | DWCP9700 | For 22" Ride | |
| 1 | DWCP9700 | For 18" Crash | |
| 1 | DWCP9700 | For 20" China | |
| 1 | DWCP9700 | For 19" China | |
| 1 | DWCP9303 Modified for | Snare Stand for | |
| 36" Height W/ 9700 Tri Pod | 3X13 Piccolo Snare | ||
| 1 | DWSM770 | Mounted on bass drum for 16" Crash # 2 (in bass drum part #) | |
| 3 | DWCP9991 Modified for 45" Height | For 7X8, 7X10, and 8X12 Toms | |
| 3 | DWCP9991 | For 9X13 and 16X18 Toms | |
| 1 | DWSP9213 | For 14" Hi Hat # 2 and 8" Splash | |
| 1 | DWSMMG1 & DWSMMG2 & DWSM934 | For 10" Splash # 2 off of 16" Crash | |
| 1 | 09HWCBTR | Cowbell tree for 5 LP cowbells | |
| CYMBALS | |||
| Qty | Part ID | ||
| 1 | SABIAN NP0805N 8IN PARAGON SPLASH | ||
| 2 | SABIAN NP1005N 10IN PARAGON SPLASH | ||
| 1 pr | SABIAN NP1302N 13IN PARAGON HIHATS | ||
| 1 pr | SABIAN NP1402N 14IN PARAGON HIHATS | ||
| 2 | SABIAN NP1608N 16IN PARAGON CRASH | ||
| 1 | SABIAN NP1808N 18IN PARAGON CRASH | ||
| 1 | SABIAN NP1916N 19IN PARAGON CHINA | ||
| 1 | SABIAN NP2016N 20IN PARAGON CHINA | ||
| 1 | SABIAN NP2008N 20IN PARAGON CRASH | ||
| 1 | SABIAN NP2214N 22IN PARAGON RIDE | ||
| STICKS | |||
| Qty | Part ID | ||
| 30 pr | PROMARK PW747W (PR) NEIL PEART SIG WT OAK STICKS | ||
Rush 30th Anniversary Neil Peart Snare Drum
Sabian - Signature Paragon Model
Download the pdf file "A Motorcycle Journey to Meductic" by Neil Peart
Take a closer look at the Paragon cymbal. Neil's signature is imprinted on the bottom cymbal bell in gold ink:
Page Updated: 07/23/2013
